CR35

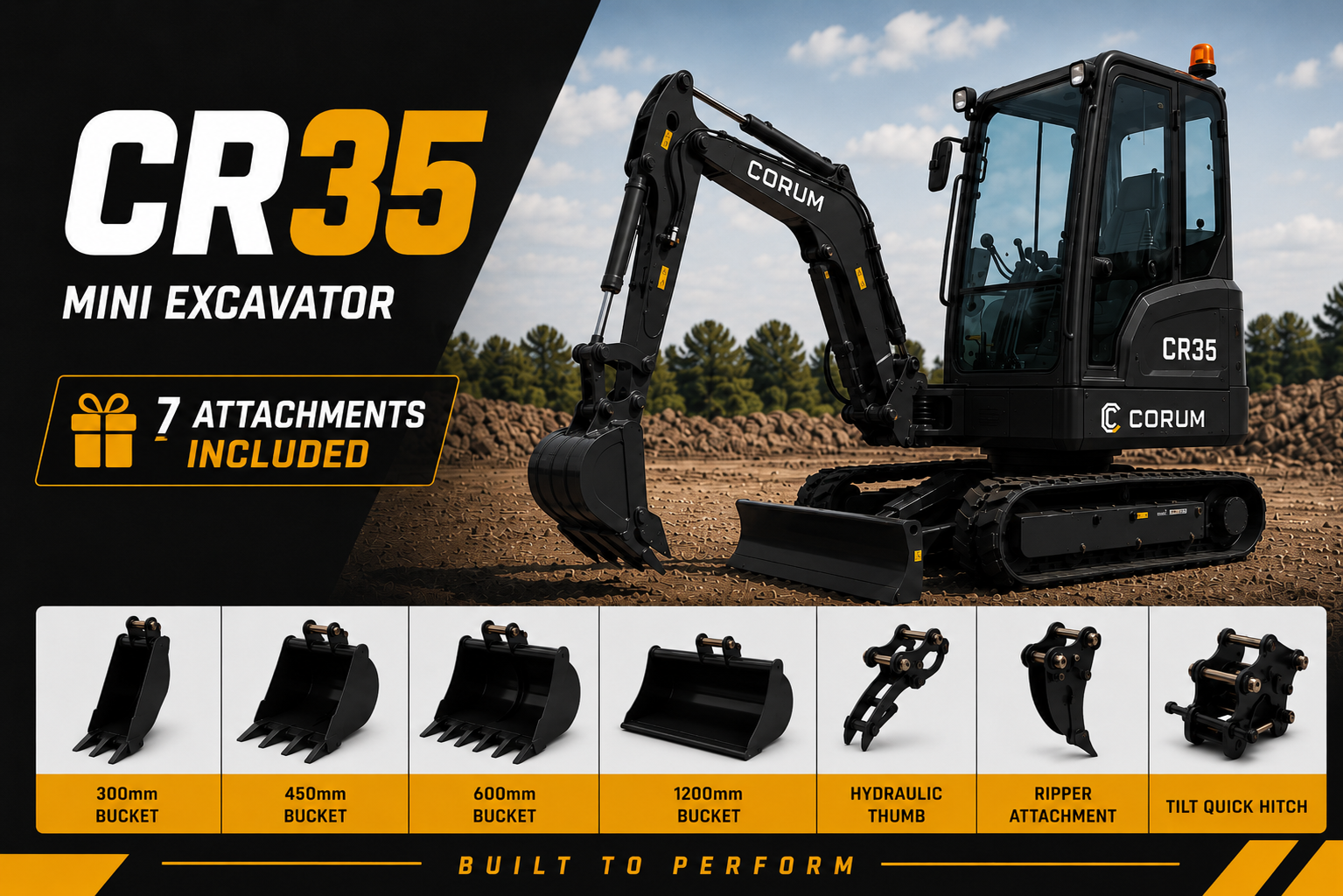

CORUM CR35 compact excavator with attachment package
<>
Order Only

Indicative Order Price

Price on confirmed specification

Compact excavator with stronger digging depth and higher hydraulic flow.
Operating Weight
3,989 kg
Engine Power
18.5 kW @ 2,200 rpm
Max Digging Depth
3,106 mm
Bucket Capacity
0.12 m³
Transport Dimensions
5,029 mm
1,720 mm
2,580 mm

Two-Stage New Machine Warranty available. See details below.

Finance Available
or
Hire Now. Decide Later.

Subject to application, approval, lender criteria, fees and provider terms. CORUM Equipment is not the lender.

Download Brochure
Get a written quote
cr35
CR18CR27CR35CR60
Product highlights
Built for practical site performance.
Compare the key features that matter when choosing a compact excavator for real work.
Worksite-ready size
Check the specification table for operating weight and width. Confirm the CR35 nominal class and final configuration in the written quote.
Reliable powertrain
Engine output supports heavier daily excavation work. Check the specification table for the current engine and rated power.
Real digging capability
The CR35 combines digging reach, bucket capacity and hydraulic flow for more demanding compact excavation tasks.
CORUM support
CORUM can help match the CR35 with the right attachment setup, service support and delivery plan.
Product story
Built to match the job.
CORUM keeps the buying experience simple by presenting the specs, application fit and support options clearly.
Best suited for
The CR35 suits contractors who need a stronger compact excavator for trenching, landscaping, construction preparation and heavier earthmoving tasks.
Capability profile
Its operating weight, digging depth and hydraulic flow make it a practical step up from smaller compact machines without moving into a large excavator category.
Support and options
CORUM can assist with attachment advice, availability, warranty guidance and support options for your application.
SPECIFICATIONS

Machine Specifications

Operating weight
3,989 kg
Engine
Kubota D1703
Controls
Engine power
18.5 kW @ 2,200 rpm
Maximum digging depth
3,106 mm
Width
1,720 mm
Transport length
5,029 mm
Transport height
2,580 mm
Bucket capacity
0.12 m³
Hydraulic working pressure
24 MPa
Hydraulic flow
79.2 L/min
Travel speed
4.2 / 2.4 km/h
Supply status
Order Only
Attachment package
Package confirmed at order
Maximum digging height
4,938 mm
Minimum swing radius
2,634 mm
Engine displacement

Attachment and package options

Available attachments and package inclusions may vary depending on the model and package selected. CORUM can confirm bucket, hitch, thumb, ripper and attachment options before purchase.

Two-Stage New Machine Warranty

24 months / 2,000 hours new-machine coverage, with defined major components covered to a total of 48 months / 4,000 hours.

Warranty terms confirmed before purchase · Support for eligible new CORUM machines · Parts and attachment support available

View Warranty Details
Ready to Discuss This Model?
Tell CORUM your preferred configuration, attachments and timing, and we’ll confirm the next steps.
Request Model

Request Machine

Selected machine:
