CR27

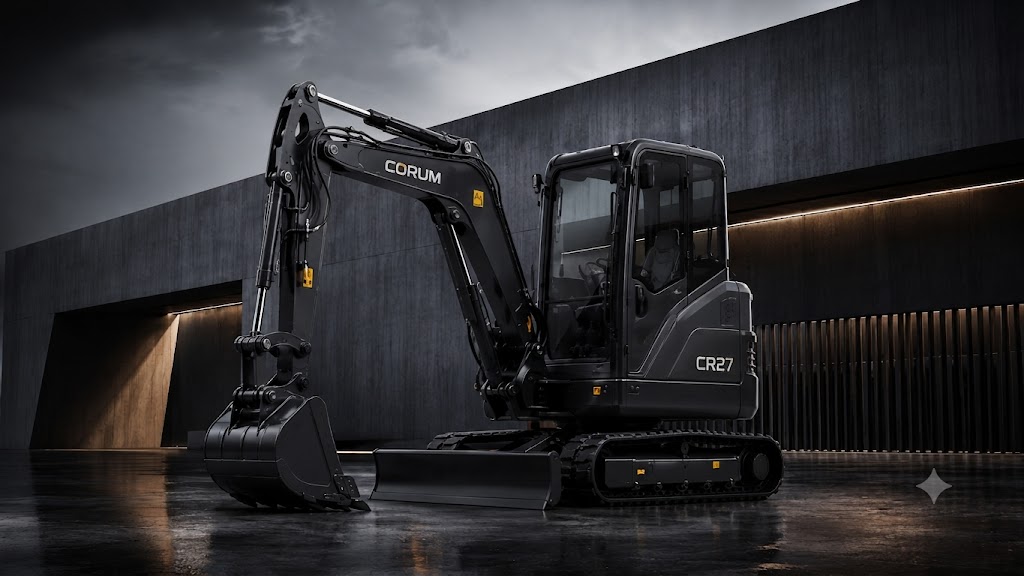

CORUM CR27 compact excavator
<>
Order Only

Indicative Order Price

Price on confirmed specification

Compact excavator with increased digging depth and hydraulic flow for more demanding work.
Operating Weight
2,480 kg
Engine Power
14.1 kW / 20 HP @ 2,000 rpm
Max Digging Depth
2,500 mm
Bucket Capacity
0.07 m³
Transport Dimensions
3,850 mm
1,300–1,500 mm
2,290 mm

Two-Stage New Machine Warranty available. See details below.

Finance Available
or
Hire Now. Decide Later.

Subject to application, approval, lender criteria, fees and provider terms. CORUM Equipment is not the lender.

Download Brochure
Get a written quote
cr27
CR18CR27CR35CR60
Product highlights
Built for practical site performance.
Compare the key features that matter when choosing a compact excavator for real work.
Worksite-ready size
The CR27 balances compact site access with digging stability. Check its width and operating weight in the specification table.
Reliable powertrain
Engine power supports landscaping, civil and construction tasks. Check the specification table for the current engine and rated output.
Real digging capability
The CR27 combines digging reach, bucket capacity and hydraulic capability for compact excavation work. Compare the confirmed figures in the specification table.
CORUM support
CORUM can assist with machine availability, attachment matching, delivery options and after-sales guidance for the CR27.
Product story
Built to match the job.
CORUM keeps the buying experience simple by presenting the specs, application fit and support options clearly.
Best suited for
The CR27 suits operators who need more capability than a small access machine while still keeping compact dimensions for tighter worksites.
Capability profile
Its retractable undercarriage and digging capability make it suitable for residential construction, trenching, site preparation and general contracting work.
Support and options
Speak with CORUM about the right attachment setup, transport requirements and delivery timing for your project.
SPECIFICATIONS

Machine Specifications

Operating weight
2,480 kg
Engine
Kubota D1105
Controls
Engine power
14.1 kW / 20 HP @ 2,000 rpm
Maximum digging depth
2,500 mm
Width
1,300–1,500 mm
Transport length
3,850 mm
Transport height
2,290 mm
Bucket capacity
0.07 m³
Hydraulic working pressure
21.5 MPa
Hydraulic flow
48 L/min
Travel speed
3–5.5 km/h
Supply status
Order Only
Attachment package
Package confirmed at order
Maximum digging height
3,980 mm
Minimum swing radius
1,850 mm
Engine displacement

Attachment and package options

Available attachments and package inclusions may vary depending on the model and package selected. CORUM can confirm bucket, hitch, thumb, ripper and attachment options before purchase.

Two-Stage New Machine Warranty

24 months / 2,000 hours new-machine coverage, with defined major components covered to a total of 48 months / 4,000 hours.

Warranty terms confirmed before purchase · Support for eligible new CORUM machines · Parts and attachment support available
