CORUM CR Series Compact Excavators

Compact machines for access, civil work, site preparation and heavier earthmoving.

CR10

CORUM · COMPACT EXCAVATOR

CR10

Compact excavator for tight-access landscaping and residential work.

Operating weight
1,020 kg
Engine
Kubota D722
Controls
Pilot controls
Engine power
10.2 kW

Supply status:

cr101,563 mm917 mm2,256 mm2,215 mm0.014 m³0–1.5 km/h
CR10e

CORUM · COMPACT EXCAVATOR

CR10e

Compact excavator for straightforward operation in confined working areas.

Operating weight
1,020 kg
Engine
192F
Controls
Mechanical controls
Engine power
7.5 kW

Supply status:

cr10e1,563 mm917 mm2,256 mm2,215 mm0.014 m³0–1.5 km/h
CR12

CORUM · COMPACT EXCAVATOR

CR12

Compact excavator for landscaping and site preparation.

Operating weight
1,175 kg
Engine
Kubota D722
Controls
Engine power
10.2 kW

Supply status:

cr121,580 mm1,067 mm2,313 mm2,243 mm0.014 m³0–1.5 km/h

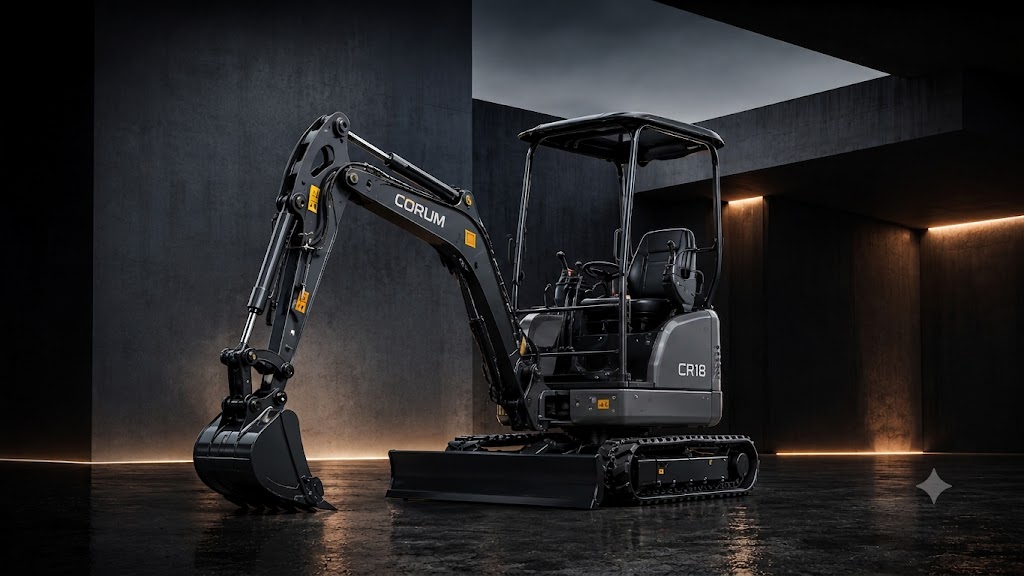

CR18

CORUM · COMPACT EXCAVATOR

CR18

Compact excavator for tight-access work, landscaping and small civil jobs.

Operating weight
1,792 kg
Engine
Kubota D902
Controls
Engine power
11.5 kW

Supply status: Order Only

cr181,995 mm970–1,270 mm2,650 mm2,350 mm0.02 m³21.6 MPa27.7 L/min2.1-4.1 km/hPackage confirmed at order

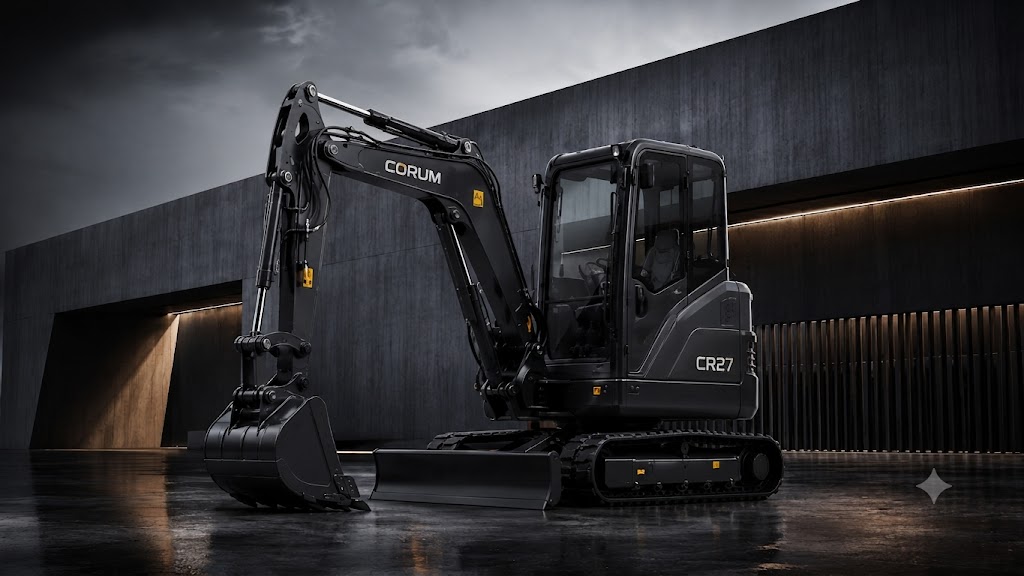

CR27

CORUM · COMPACT EXCAVATOR

CR27

Compact excavator with increased digging depth and hydraulic flow for more demanding work.

Operating weight
2,480 kg
Engine
Kubota D1105
Controls
Engine power
14.1 kW / 20 HP @ 2,000 rpm

Supply status: Order Only

cr272,500 mm1,300–1,500 mm3,850 mm2,290 mm0.07 m³21.5 MPa48 L/min3–5.5 km/hPackage confirmed at order

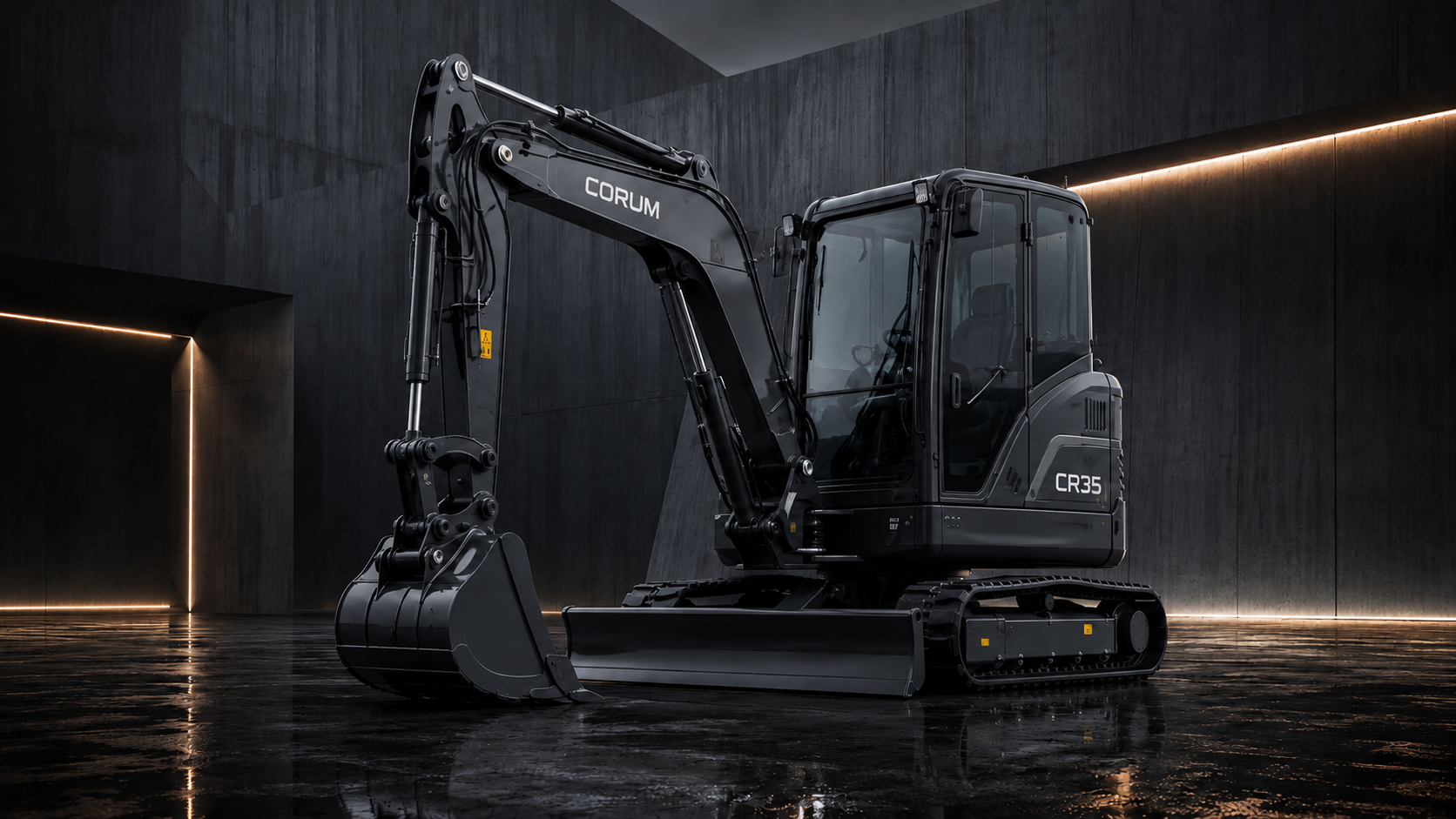

CR35

CORUM · COMPACT EXCAVATOR

CR35

Compact excavator with stronger digging depth and higher hydraulic flow.

Operating weight
3,989 kg
Engine
Kubota D1703
Controls
Engine power
18.5 kW @ 2,200 rpm

Supply status: Order Only

cr353,106 mm1,720 mm5,029 mm2,580 mm0.12 m³24 MPa79.2 L/min4.2 / 2.4 km/hPackage confirmed at order

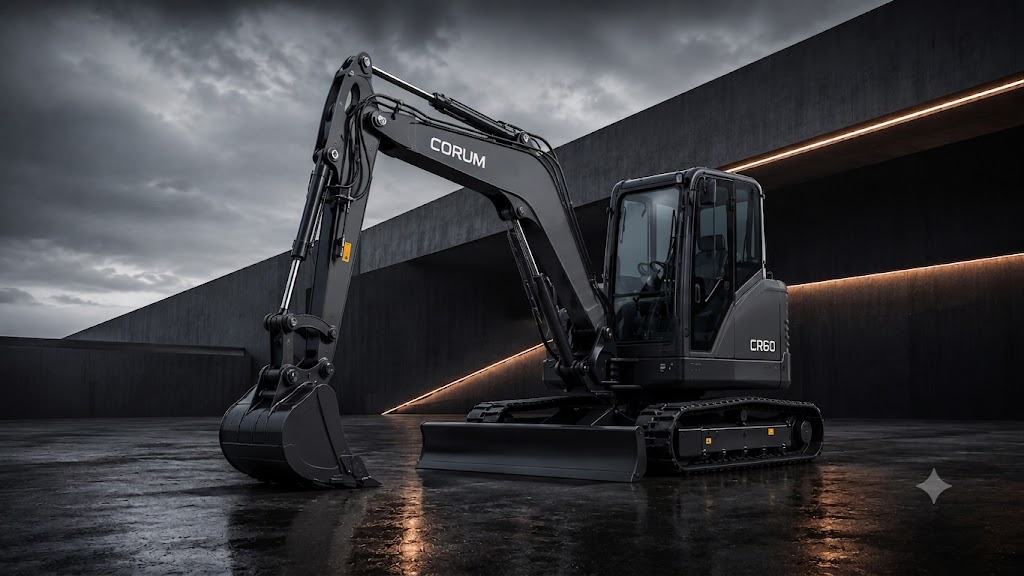

CR60

CORUM · COMPACT EXCAVATOR

CR60

Crawler excavator with deeper digging reach and load-sensing hydraulics.

Operating weight
6,000 kg
Engine
Yanmar 4TNV94
Controls
Engine power
37.4 kW @ 2,200 rpm

Supply status: Order Only

cr603,820 mm1,880 mm5,850 mm2,575 mm0.3 m³ SAE28 MPa109 L/min2.4–3.8 km/hPackage confirmed at order

Compare CR models.

A quick overview before you view detailed specifications.

Choose models to compare specifications.

COMPACT EXCAVATOR SIZE GUIDE

Not sure which machine class fits the job?

Start with access width, digging depth, working space, transport, ground conditions and attachment demand. Compare the current CORUM range against your job requirements.

Read the size guide

Choose how you want to get started.

Purchase your machine outright, explore equipment finance, hire a selected new machine first, or ask CORUM to help find a different machine.

Equipment Finance

Purchase a machine using equipment finance through our independent finance partner.

Explore Equipment Finance

Hire Now. Decide Later.

Hire a selected new CORUM machine first and keep a later purchase discussion optional.

Explore Hire First

Find a Machine

Tell CORUM what you need and enquire about suitable Australian Stock or Overseas Sourcing opportunities.

Find a Machine

24 Months / 2,000 Hours New Machine Limited Warranty · Major Components to a Total of 48 Months / 4,000 Hours.

Eligible new CORUM machines include two-stage limited Warranty cover: 24 months or 2,000 operating hours of new-machine coverage, followed by limited major-component coverage to a total of 48 months or 4,000 operating hours from the original delivery date, whichever occurs first. Full terms, exclusions, servicing requirements and eligibility apply. CORUM provides local warranty coordination, technical assistance and parts support throughout the applicable warranty period.

Courtesy Replacement Machine Support may be available when an accepted covered repair is reasonably expected, following diagnosis, to require more than five business days. Availability is not guaranteed and remains subject to location, machine availability, customer eligibility and prior written approval.

View Full Warranty Terms

FAQ

Common questions

Quick answers for buyers comparing CORUM CR Series machines.

Which CR model is best for tight access?

Compare overall width, operating weight and digging depth in the current model specifications. Tell us about gateways, transport and working space so we can help you choose a suitable machine.

Which model should I choose for general civil or residential work?

CR27 offers more capability while keeping compact dimensions, making it suitable for compact civil work, residential jobs and site preparation.

When should I choose CR35 or CR60?

CR35 suits heavier compact excavation and stronger daily digging work. CR60 is better suited to larger earthmoving and site preparation tasks that require more reach and capacity.

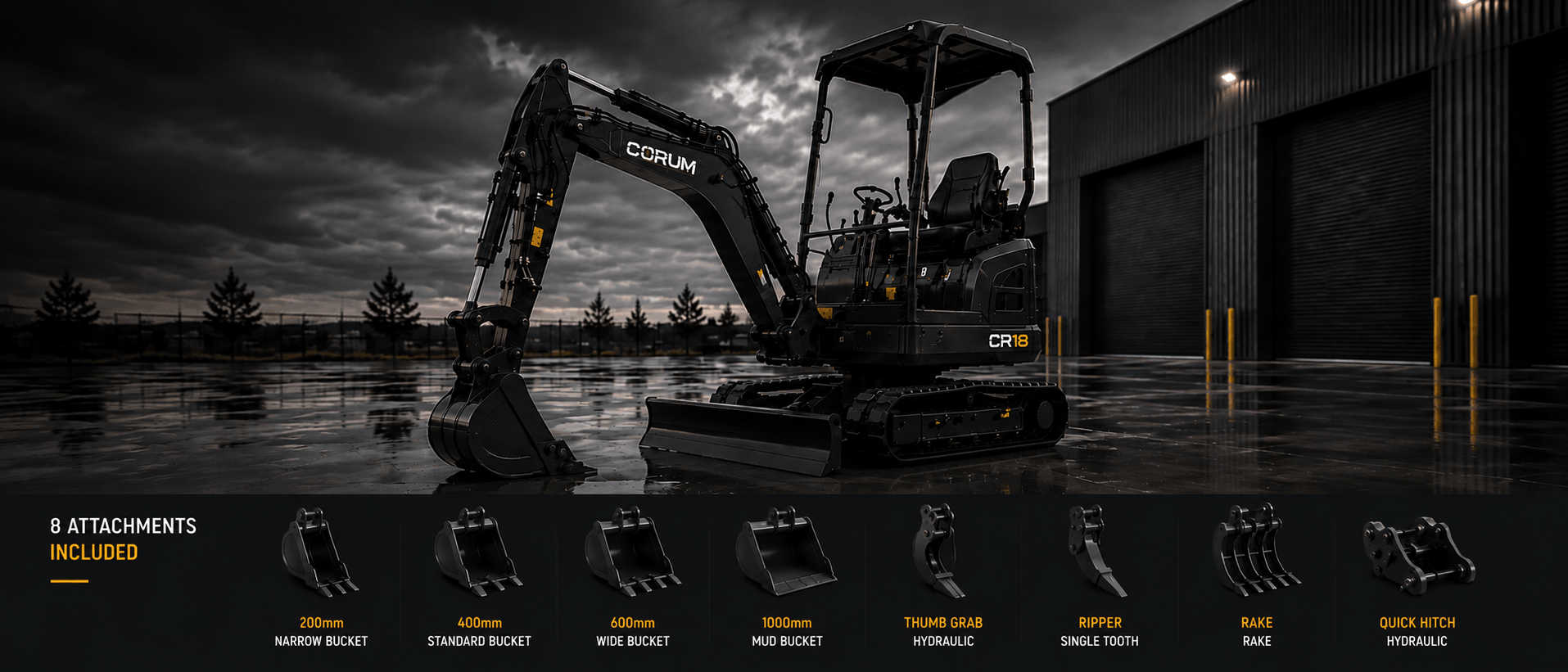

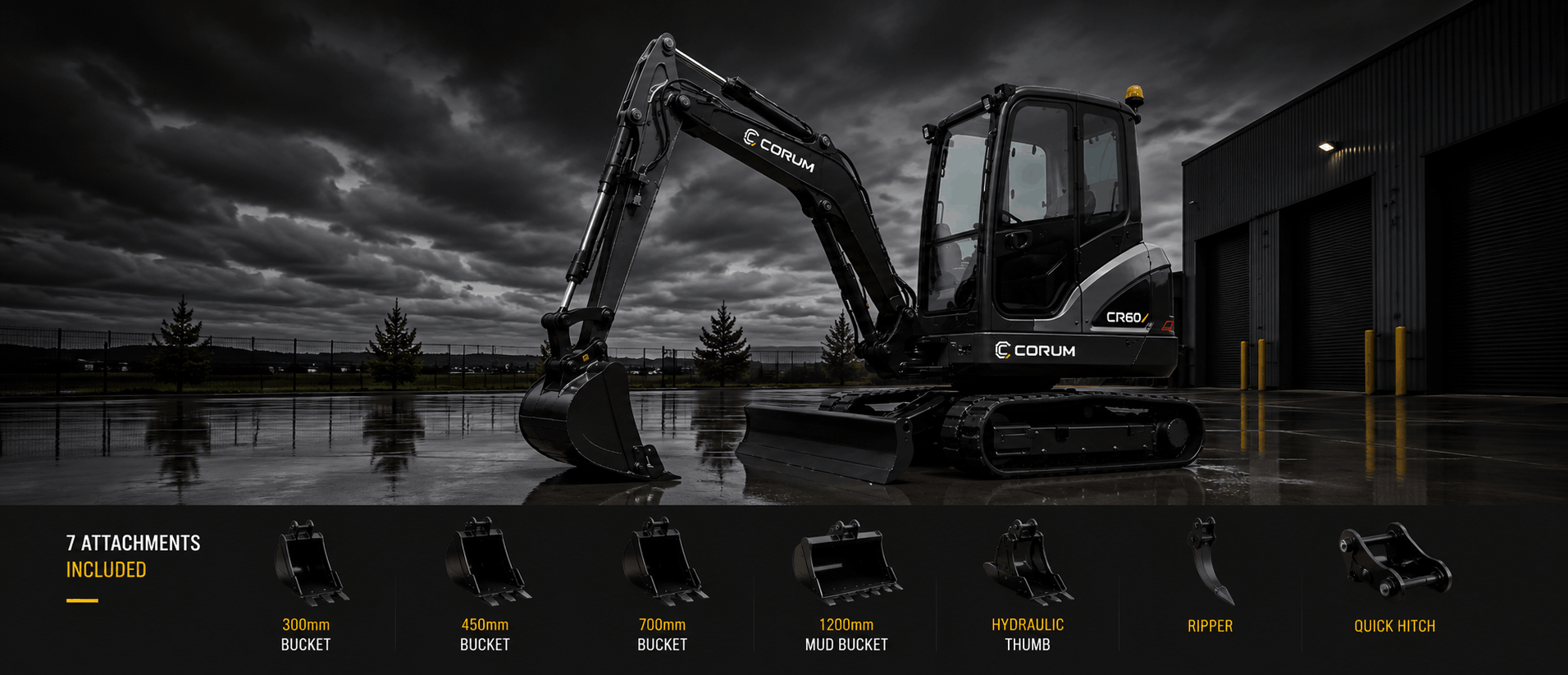

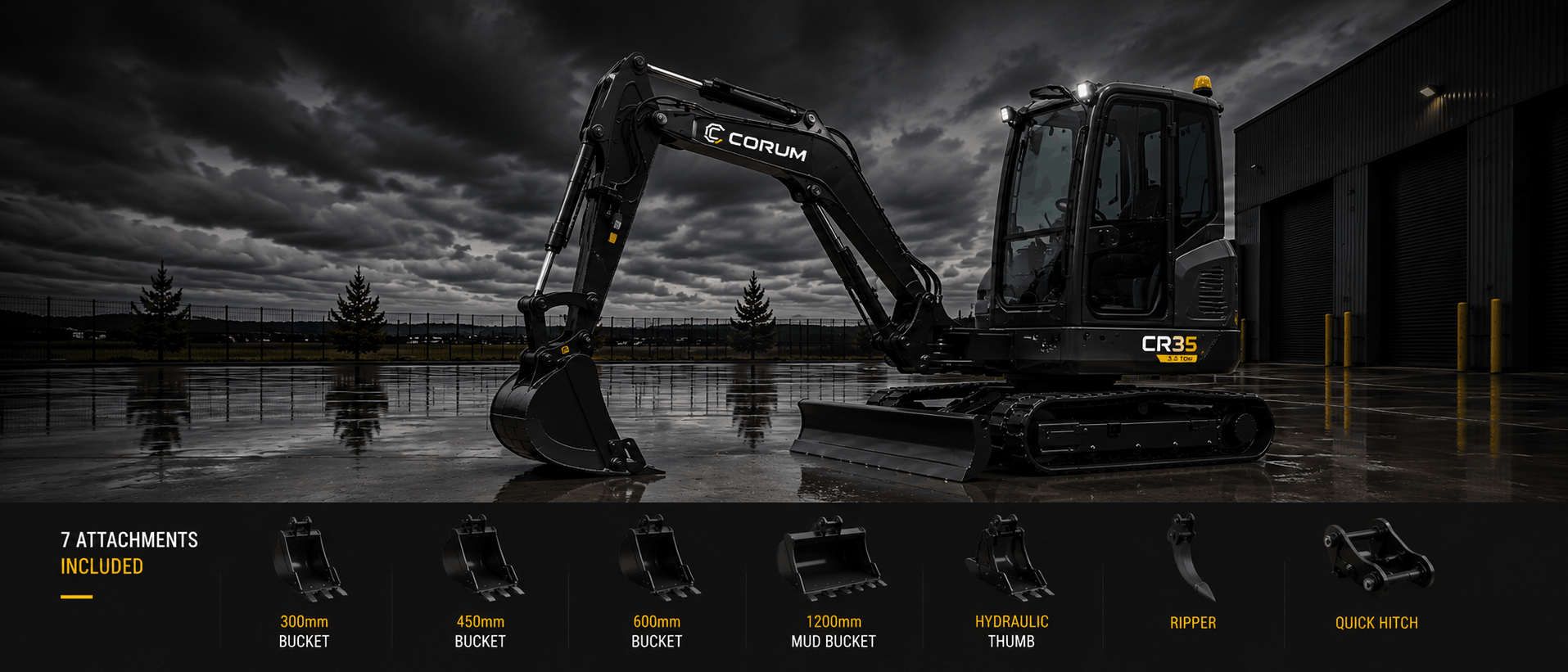

What attachments can be included with a new CORUM machine?

CORUM new machine packages are designed to offer strong value from day one. Depending on the model and package selected, machines can be supplied with useful attachments such as buckets, a hydraulic quick hitch, hydraulic thumb, ripper and other machine-matched tools. Speak with CORUM to confirm the exact attachment package for your machine.

What warranty applies to new equipment?

Eligible new CORUM machines include two-stage limited Warranty cover: 24 months or 2,000 operating hours of new-machine coverage, followed by limited major-component coverage to a total of 48 months or 4,000 operating hours from the original delivery date, whichever occurs first. Full terms, exclusions, servicing requirements and eligibility apply.

Can CORUM help with pickup or delivery?

Yes. CORUM can discuss pickup and delivery options based on your location, machine size and project timing. Contact CORUM with your site address and preferred dates for a practical logistics quote.
